EL3052

产品详情

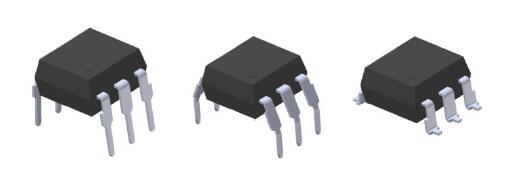

6 PIN DIP RANDOM-PHASE TRIAC DRIVER PHOTOCOUPLER
EL301X, EL302X, EL305X Series

Features:

• Peak breakdown voltage
- 250V: EL301X
- 400V: EL302X
- 600V: EL305X
• High isolation voltage between input and output (Viso=5000 V rms )
• Compact dual-in-line package
• Pb free and RoHS compliant.
• UL and cUL approved(No. E214129)
• VDE approved (No.132249)
• SEMKO approved
• NEMKO approved
• DEMKO approved
• FIMKO approved

Description

The EL301X, EL302X and EL305X series of devices each consist of a GaAs infrared emitting diode optically
coupled to a monolithic silicon random phase photo Triac.
They are designed for interfacing between electronic controls and power triacs to control resistive and inductive loads for 115 to 240 VAC operations.

Applications

 Solenoid/valve controls
 Lamp ballasts
 Static AC power switch
 Interfacing microprocessors to 115 to 240Vac peripherals
 Incandescent lamp dimmers
 Temperature controls
 Motor controls
